Description
SignalScope XM Basic Tool Set
SignalScope XM is Faber Acoustical's dynamic signal analysis, data acquisition, and acoustics app for Mac. The culmination of over 20 years of development experience on Apple platforms, SignalScope XM offers basic, advanced, and professional tool sets to meet your analysis and measurement needs in acoustics, audio, and electroacoustics. SignalScope XM’s Basic Tool Set includes access to a suite of basic analysis tools, plus specialized hardware support, such as auto-loading factory-supplied microphone sensitivities for select USB microphones, updated nominal voltage sensitivities for select audio input devices, and automatic calibration for audio input devices that include built-in sensitivity information.
Basic Tools
- Oscilloscope
- FFT-based Spectrum Analyzer

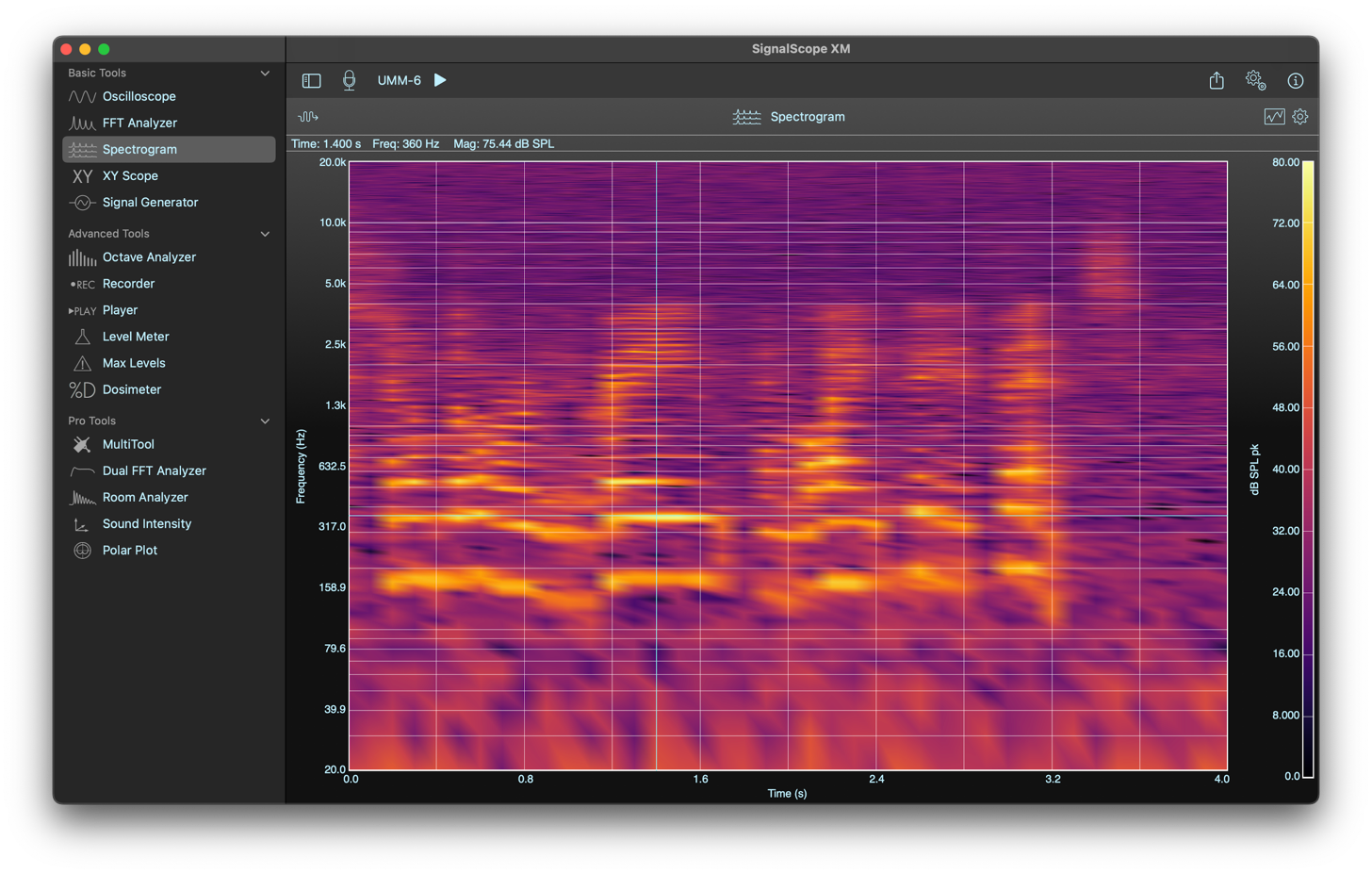

- Spectrogram (2D)
- XY Scope

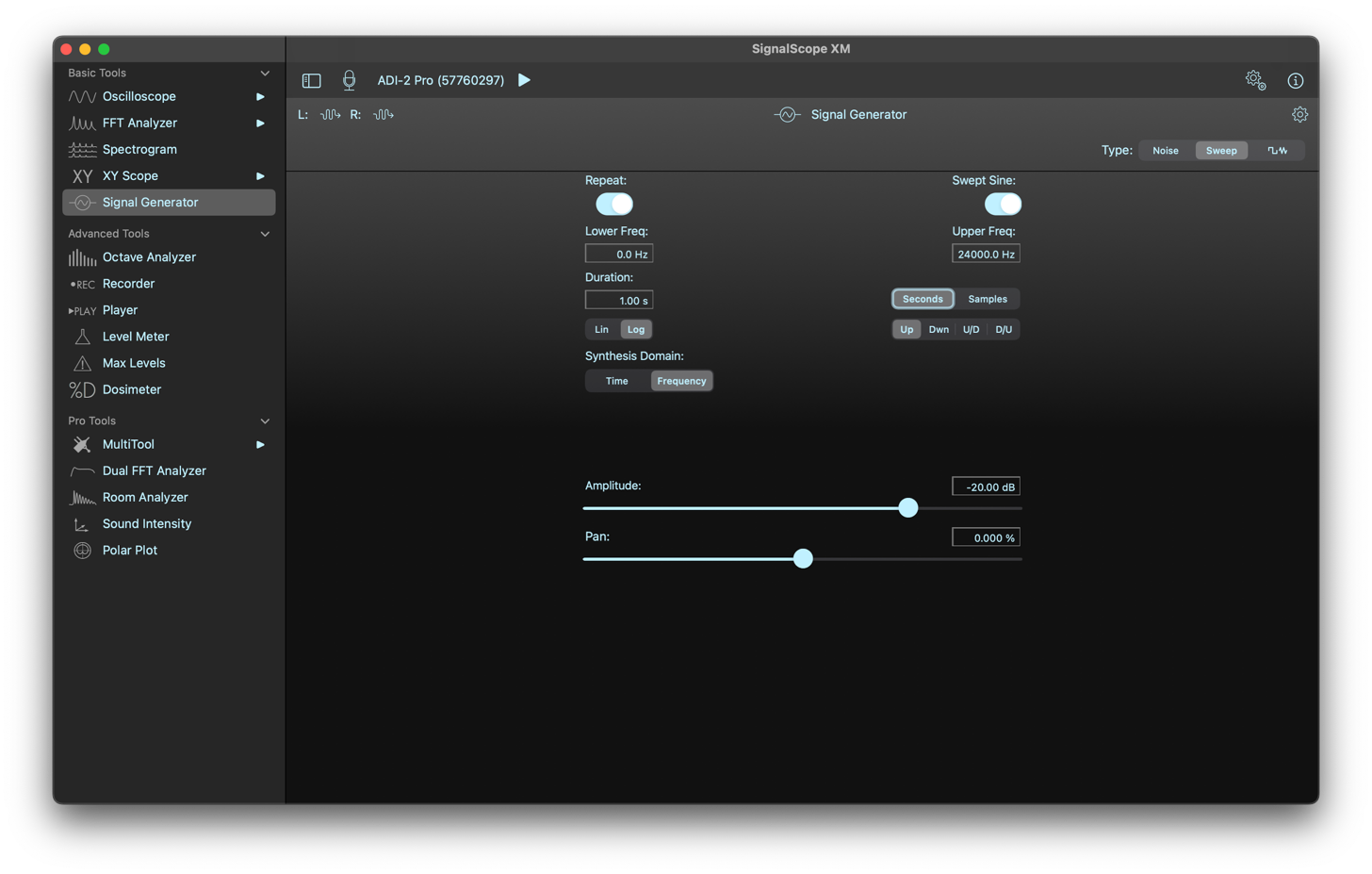

- Stereo Signal Generator
Features
- Analyze signals coming from any available audio input device connected to your Mac.
- Assign engineering units to your input signals and calibrate external transducers for accurate measurements.
- Assign input channel units and sensitivities for individual USB Audio devices.
- Connect lab-grade microphones and sensors to your Mac with suitable interface hardware for precise measurements.
- SignalScope XM offers enhanced support for select hardware from Digiducer, The Modal Shop, Dayton Audio, and miniDSP.
- Manually switch between available audio input and output sources.
- Load microphone frequency response data (FRD) and apply frequency response correction (FRC) to FFT-based measurements.
- Manually adjust audio sample rates, even up to 768 kHz, depending on input hardware.
- Save acquired measurement data to CSV, tab-delimited ASCII text, or MAT files.
- Save high-resolution analyzer display images to PDF files.
Tech Specs
-
Mac:
Cpu: Intel or Apple Silicon
Version: macOS 12.0 or later
