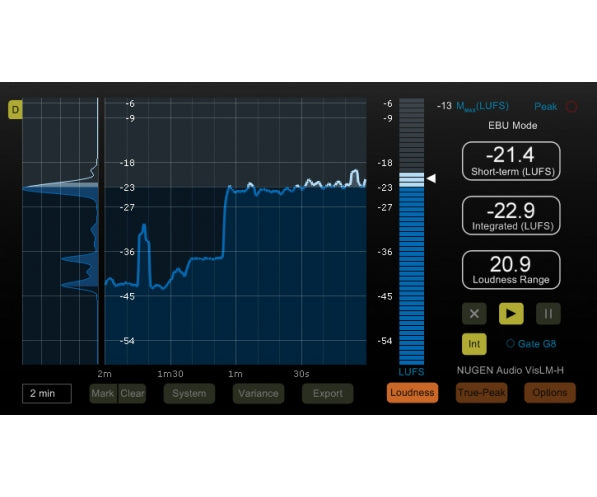

Upgrade VisLM-C2 to VisLM H2
--
This electronic download of the VisLM-C to VisLM-H Upgrade from NUGEN Audio is a compact loudness meter plug-in and standalone application that offers a variety of loudness measurement tools intended for use in audio mastering, broadcast, film and more. It offers true-peak level metering designed to additionally capture spikes that may occur between samples. This method delivers a greater degree of accuracy compared to other forms of metering such as sample peak and QPPM (quasi-peak program meter) which do not detect inter-sample peaks.
The VisLM-H can also aid in loudness normalization by allowing for comparisons between loudness and loudness range. This can help in mixing to ease the process of balancing the gain levels between different audio sources such as music, dialog, effects, etc. These measurements can also come in handy in mastering to help determine the appropriate dynamic compression settings.
In addition, the software also offers momentary loudness metering for real-time level monitoring, short-term metering which shows loudness levels over 3 second windows, and program metering which displays a long-term averaged loudness measurement.
Note: This upgrade is for registered users of the VisLM-C software
Accurate Analysis
Native NLE/DAW operation (PT, Avid MC, FCP, Premiere etc.)
Stand alone application
International standards compliant
'Alert' warning options
Loudness boundary indicators
Industry Standard Benchmark
ITU-R BS. 1770 | EBU R128 | CALM Act compliant
Momentary, short term and integrated loudness
Loudness range
Overall program loudness measurement
Maximum "true-peak" level meters
'EBU mode' meters
Automatic mono through 5.1 compatibility + ASWG 7.1 support
Highly configurable
Loudness History Profiling
Historical loudness profile
Offline data export
Multiple export parameters
Postmortem time code referencing
System Requirements Mac
OS X 10.6.x
512 MB RAM
For plug-in use host software that supports 64-bit and 32-bit versions of Audio Units, AAX, AudioSuite, VST, VST3 and 32-bit RTAS plug-in formats
PC
Windows XP or above
512 MB RAM
For plug-in use host software that supports 64-bit and 32-bit versions of AAX, AudioSuite, VST, VST3 and 32-bit RTAS plug-in formats
Supported Standards International standard ITU-R B.S. 1770, revisions 1, 2 and 3 including:
ATSC A/85 (CALM ACT)
EBU R128
ARIB TR-B32
OP-59
AGCOM 219/9/CSP
DPP
