Sonnox Oxford DeClicker Native

The Oxford DeClicker has three main sections: DePop, DeClick and DeCrackle. These three sections deal with events that are up to 10ms, 3ms and 0.4ms in duration, respectively. Each of these sections has a threshold and sensitivity control, and an excitation profile which shows the residual signal left after harmonic content is removed. The excitation profile represents how much the signal deviates from the predicted signal.

The threshold controls determine how many events are detected, and the sensitivity controls determine how many of those detected events go on to be repaired.

The Events Graph

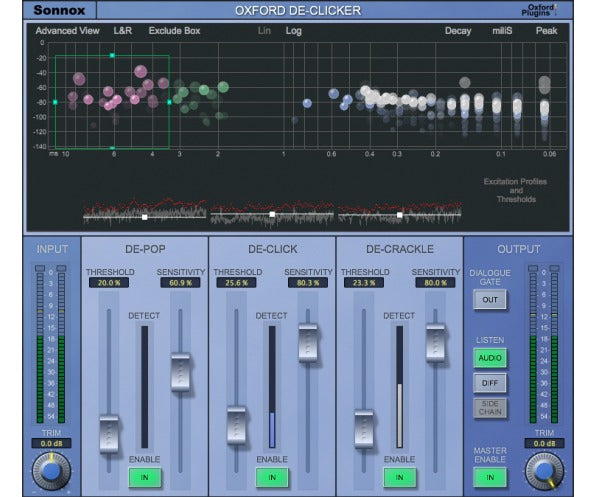

The events graph is an important visual display, showing events as they are being detected. The events are shown with duration along the X-axis and amplitude/energy along the Y-axis.

The graph shows green bubbles (DePop), blue bubbles (DeClick) and white bubbles (DeCrackle). The size of the bubbles indicates how loud they are, as does their height above the horizontal axis. Each section has an IN button, and if you disable a section using the IN button, their bubbles are displayed as Red, meaning these events have been detected but not repaired.

The Exclude Box

One unique feature of the Oxford DeClicker is the Exclude Box, which enables the exclusion of detected events from the repair section. Audio restoration is always about finding the right compromise between removing unwanted noise and leaving the desired remaining audio intact without too much loss of high frequency content

The exclude box aids this process by making exceptions to what is repaired so you don't have to battle with the sensitivity control in finding this compromise. For example, you may be happy with a piece of music and the associated repairs, except for a section with brass instruments - at which point too many high energy events are detected and corrected, resulting in diminished brightness. Similarly you may see a pop on the display that you know is part of your 'wanted audio', but other than that you are happy with your control settings. Simply draw a box around the area on the graph you wish to exclude and any events detected within that area will not be repaired (and will be coloured red).

Dialogue Mode

Another example of the Oxford DeClicker's flexibility is Dialogue Mode, which enables two independent banks of controls to be set up differently for dialogue and background.

For example you may want the threshold/sensitivity settings to be quite different during dialogue from the settings you'd want for pauses between speech. Dialogue mode puts you in control by allowing you set a threshold which determines an 'above set' and a 'below set' which can be controlled quite independently. There are even side-chain filters which can further help define the threshold between above and below sets.

Output

The listen section of the Output Panel contains an option to listen to the difference between the input and the processed output. This is labeled 'Diff' and is particularly useful for hearing what has been repaired, and for listening to the quality of the repairs without being distracted by the audio material.
